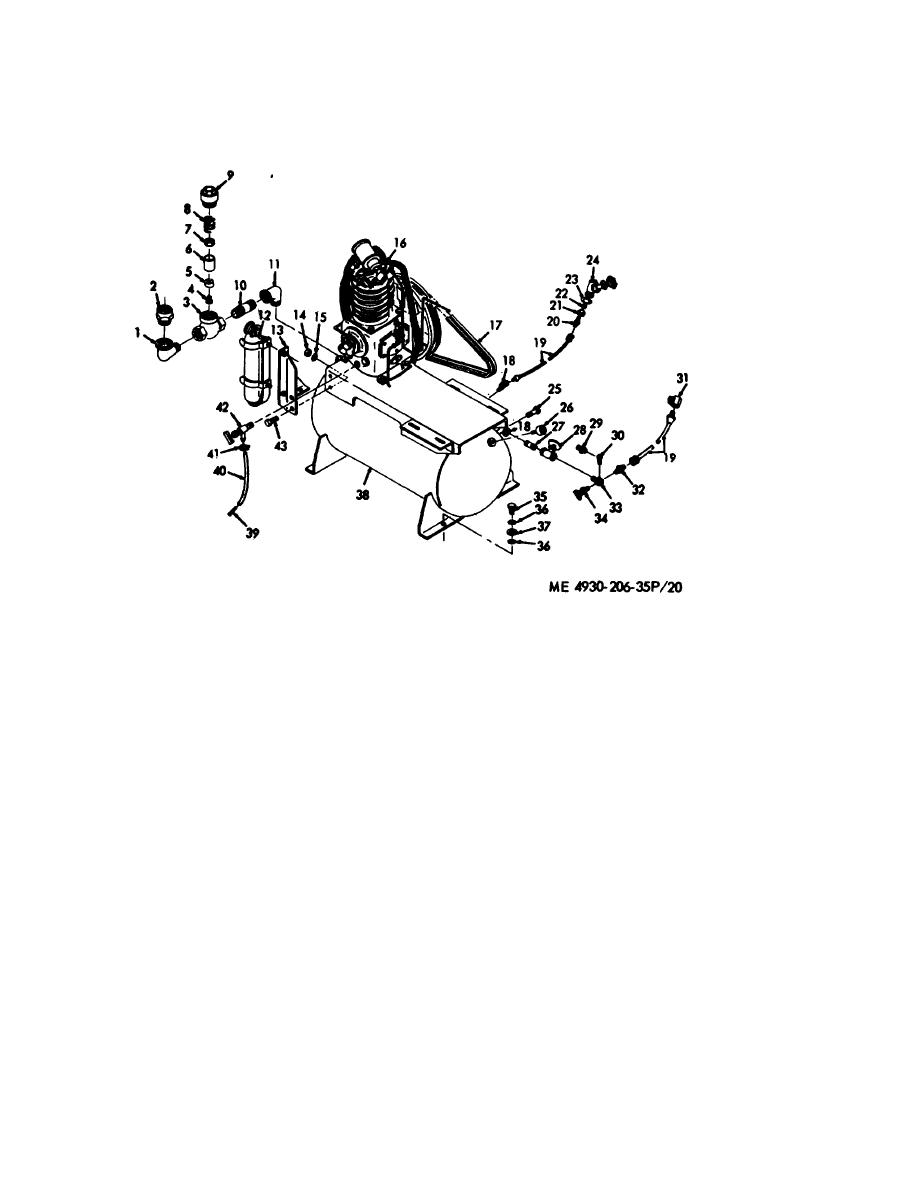

Figure 20. Air Receiver, Compressor Components.
INDEX TO PARTS, FIGURE 20
Reference
Functional
Item
Reference
Functional
Item
Number
Group
Name
Number
Group
Name
1
5010
ELBOW
23
5015
WASHER
2
5010
ADAPTER
24
5015
VALVE
3
5010
BODY
25
5014
VALVE
4
5010
SCREW
26
4702
GAGE
5
5010
DISK
27
5015
NIPPLE
6
5010
PLUNGER
28
5015
VALVE
7
5010
NUT
29
5015
NIPPLE
8
5010
SPRING
30
5015
ELBOW
9
5010
CAP
31
5015
UNION
10
5010
NIPPLE
32
5015
NIPPLE
11
5010
ELBOW
33
5015
MANIFOLD
11
5015
ELBOW
34
5015
COCK
12
7603
EXTINGUISHER
35
5014
SCREW
13
7603
BRACKET
36
5014
WASHER
14
7603
NUT
37
5014
WASHER
15
7603
WASHER
38
5014
RECEIVER
16
5000
39
5006
PIPE
17
5007
BELT
40
5006
HOSE
18
5015
ELBOW
41
5006
CLAMP
19
5015
HOSE AY
42
5006
VALVE
20
5015
COUPLING
43
7603
SCREW
21
5015
COUPLING
22
5015
NIPPLE
130
